5kw Single Cylinder

Ask Lasest Price
Brand Name :	OUMA
Certification :	CE,ISO, EPA, SONCAP,CPCB
Model Number :	OM5CYF
Price :	To be inquired
Delivery Time :	20 working days
Payment Terms :	T/T or L/C at sight
Supply Ability :	100 units/day

Add to Cart

Product Details
Company Profile

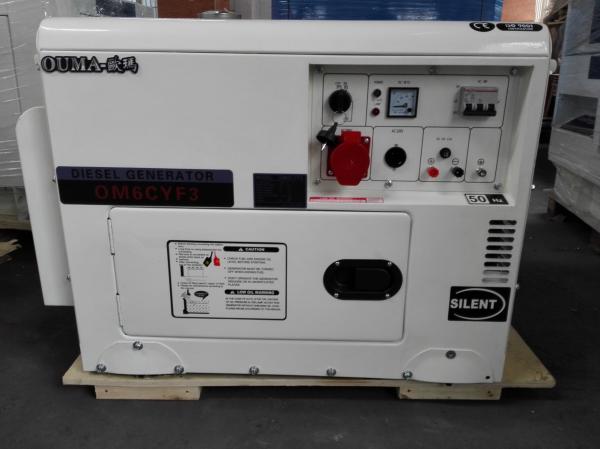

5kw Single Cylinder

OUMA 5-7kw generators ranging from 4.5kw to 6.6kw are powered by single cylinder engine, which is air-cooled with OUMA special design. Application for residential and lighting solutions.

This range is biggest competition in the market, OUMA guarantee only use top brand and well-recognized parts in this industry. For example, bearings are only genuine NSK brand. OUMA is not competing by price but by trustable quality and service as well as most favourable warranty.

Specifications:

Generator set	Model	OM5CYF
	Brand	OUMA
	Rated power(KW)	4.5 5
	Rated voltage(V)	115/230 120/240
	Rated current(A)	39.1 41.6
	Rated frequency(Hz)	50 60
	Waveform distortion	Sinewave,distortion ≤5%
	Noise level(dB@7m)	68
	Battery(12V-Ah)	12V 36HA
	Overall dimension (L×W×H)(mm)	910×530×740
	Overall weight(kg)	140
	Fuel tank capacity(L)	15
	Continuous running(h)	7
Diesel engine	Model	OM186FAE
	Brand	OUMA
	Power output(KW)	6 7.2
	Type	Single cylinder, direct injection, four stroke,air-cooled.
	Displacement(mL)	418
	Bore×Stroke(mm)	86×72
	Rotation speed(r/m)	3000 3600
	Governor system	Electronic
	Starting mode	12V DC
	Lube Type	Above CD grade or SAE10W-30,15W-40
	Cooling type	Air-cooled
	Exhaust muffler	Upward exhaust
	Lube Capacity(L)	1.65
	Fuel consumption(g/kw.h)	360
	Fuel Type	Diesel
Alternator	Model	Brush OM230
	Brand	OUMA
	Rated power(KW)	4.5 5
	Excitation mode	Brush, self-excitation
	Voltage regulation	Auto regulation
	Number of phase	Single phase
	Number of pole	2
	Rotation speed(R/M)	3000 3600
	IP grade	B
