Rain proof ultra ,withstanding all weather conditions.
60℃ radiator, no overheat would happen in high temperature weather condition.
To enhance cooling effect, engine oil cooler may be equipped. For
chilly conditions, engine oil heater and water heat jacket would be
used.
57 dbA noise level, quiet enough to leave the users and neighbourhood a good
living environment. Four-cavity design of genset housing. i.e. engine and alternator cavity, silencer cavity, radiator and
electronic fan cavity, battery cavity, the genset can run at very
low noise and genset size is quite small. Internal temperature of
the genset housing is kept 40-50℃, safety is ensured while
performance of the genset is maximized. This design is patent
protected to OUMA.
Central AC type cooling fan: 20,000 hours service life, much more than 500 hours as most
genset factories use. The cooling fan connection mode is patent
protected to OUMA.
2.0mm cold-rolled steel genset canopy: rigid and corrosion resistant.
Advanced painting and finishing, no painting colour fade within 5 years.
Battery switch to switch off battery when genset is not in use, so no power loss
of battery.
Fuel non-return valve to prevent fuel returning back to fuel tank and inlet of air to
the fuel pipe, so easy start of genset after long time of non-use.
Competitive price and fast delivery within 20 working days
15 months or 1000 running hours warranty, whichever comes first.
Smallest size and most compact structure, maximum loading and installation space.
Specifications:
| Generator set | Model | OM20CYJD |
| Brand | OUMA |
| Rated power(KW) | 20 24 |
| Rated voltage(V) | 115/230 120/240 |
| Rated current(A) | 173/86.9 200/100 |
| Rated frequency(Hz) | 50 60 |
| Waveform distortion | Sinewave, distortion ≤5% |
| Noise level(dB@7m) | 57 |
| Battery(12V-Ah) | 60 |
Overall dimension
(L×W×H)(mm) | ≤ 1850x730x880 |
| Overall weight(kg) | ≤700 |
| Fuel tank capacity(L) | 70 |

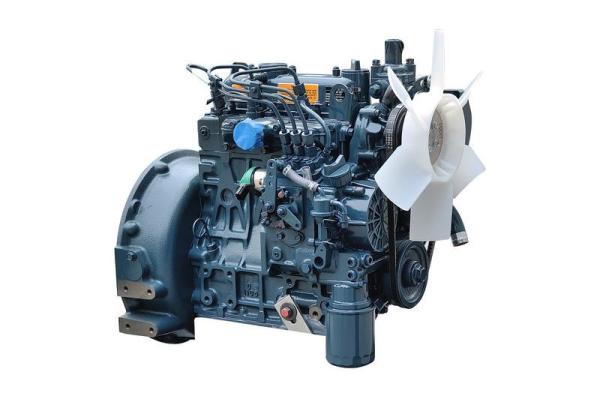

| Diesel engine | Model | V3300 |
| Brand | KUBOTA |
| Power output(KW) | 29 34.8 |
| Type | Four cylinder, direct injection, four stroke |
| Displacement(L) | 3.318 |
| Bore×Stroke(mm) | 987×110 |
| Rotation speed(r/m) | 1500 1800 |
| Governor system | Mechanical |
| Starting mode | 12V DC |
| Filter system | Dry air filter, fuel filter, oil filter |
| Cooling type | Enclosed water-cooled |
| Exhaust muffler | Upward exhaust |
| Radiator size(L) | 9 |
| Fuel consumption(g/kw.h) | ≤220 |
| Oil capacity(L) | 7.6 |
| Alternator | Model | PI144J |
| Brand | Stamford |
| Rated power(KW) | 20 24 |
| Excitation mode | Brushless, self-excitation |
| Voltage regulation | Auto regulation |
| Number of phase | Single phase, three wire |
| Number of pole | 4 |
| Rotation speed(R/M) | 1500 1800 |
| Temperature rise(℃) | 125 |
| Insulation grade(stator/rotor) | H/H |
| Voltage regulation range w/o load | ≥95%～105% |
| Steady-state voltage deviation | Less ±1% |
| Interference factor | TIF＜50,THF＜2% |
| IP grade | IP23 |
| Control panel | Model | OM588 |
| Manufacturer | OUMA |
| Power output | Terminal post |
| Installation | In-built and remote cable connected |
| Remote conrol w/ cable(M) | 12 |
| Manufacturer | OUMA |
| Auto function | Manual/auto protection/shutdown, water temperature alarm, oil
pressure alarm |
| Parameter display | AC voltage, frequency, running hour, charging voltage |
