18kw single phase vehicle mounted generator-OUMA Kubota series

    Buy cheap 18kw single phase vehicle mounted generator-OUMA Kubota series from wholesalers

    Buy cheap 18kw single phase vehicle mounted generator-OUMA Kubota series from wholesalers
    • Buy cheap 18kw single phase vehicle mounted generator-OUMA Kubota series from wholesalers

    18kw single phase vehicle mounted generator-OUMA Kubota series

    Ask Lasest Price
    Brand Name : OUMA
    Certification : CE,ISO, EPA
    Model Number : OM18CYJ
    Price : To be inquired
    Delivery Time : 20 working days
    Payment Terms : T/T or L/C at sight
    Supply Ability : 100 units/day
    • Product Details
    • Company Profile

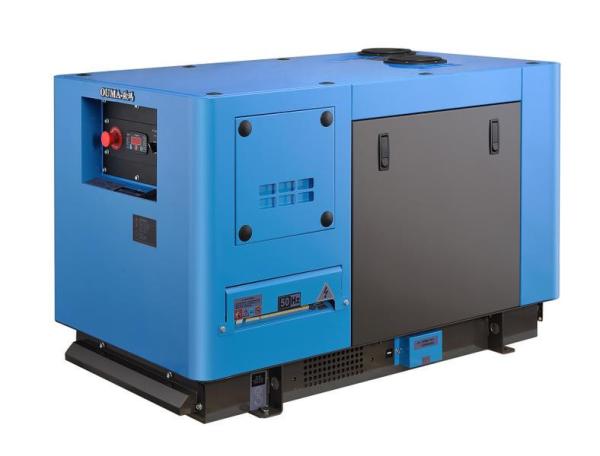

    18kw single phase vehicle mounted generator-OUMA Kubota series

    OUMA Kubota RV generators ranging from 8kw to 25kw are powered by Kubota Japan origin and equipped with Stamford alternator. As one of the most important partner of Kubota in China, OUMA generators are outstanding by smallest size and lowest noise level 57dbA.

    With in-built or external muffler and radiator, installation is more felexible. You can install the generator in a very small space, while muffler and radiator in any possible location of the vehicle. Cool and safe!

    OUMA RV generators have features to best suitable for the local application conditions:

    • 6-25kW powered by Kubota engine Japan origin.
    • Remote control with cable in driving cab.
    • Sinewave output with distortion ≤5%; Brushless self-excited alternator with auto voltage regulation, H insulation grate, 125℃ temperature rise, less ±1% steady-state voltage fluctuation, TIF<50%, THF<2%, IP22.
    • Complete display of main parameters and protections on the control panel.
    • Unique noise reduction technology, noise of silent gensets is within 62 dbA.
    • Two big service doors with easy removal from the genset body,which can be installed in small space with easy accessibility for check and maintenance.
    • Auto type door rubber seal strip and high quality noise attenuation sponge and flame-retardant sponge are applied.
    • 60℃ radiator is used on all gensets so they can be used in all weather conditions
    • 2.0mm cold-rolled steel for the genset canopy, rigid and corrosion resistant. Painting is by electrostatic spraying, no color difference or fading within 5 years.
    • Relay, fuse and AVR are in one box for easy maintenance or repair.
    • Smallest size compared with counterparts using the same engine and alternator for the same rating gensets. Save transportation cost and installation space.
    • Availability of manufacturer genuine spare parts for whole life of the gensets.
    • Assembling bolts are hidden covered by corrosion-resistant rubber cover.

    Specifications:

    Generator SetModelOM18CYJ
    BrandOUMA
    Rated power(KW)18 20
    Rated voltage(V)115/230 120/240
    Rated current(A)156/78.2 166/83
    Rated frequency(Hz)50 60
    Waveform distortionSinewave, distortion ≤5%
    Noise level(dB@7m)57
    Battery(12V-Ah)None
    Overall dimension
    (L×W×H)(mm)
    ≤ 1400x730x820
    Overall weight(kg)≤640
    Fuel tank capacity(L)None
    Diesel EngineModelV3300
    BrandKUBOTA
    Power output(KW)29 34.8
    TypeFour cylinder, direct injection, four stroke
    Displacement(L)3.318
    Bore×Stroke(mm)987×110
    Rotation speed(r/m)1500 1800
    Governor systemMechanical
    Starting mode12V DC
    Filter systemDry air filter, fuel filter, oil filter
    Cooling typeWater-cooled
    Radiator installationIndependent built-out
    Radiator dimension
    (L×W×H)(mm)
    620x510x340
    Muffler installationIndependent built-out
    Water tank capacity(L)9
    Fuel consumption(g/kw.h)≤220
    Oil capacity(L)7.6
    AlternatorModelPI144G
    BrandStamford
    Rated power(KW)18 20
    Excitation modeBrushless, self-excitation
    Voltage regulationAuto regulation
    Number of phaseSingle phase, three wire
    Number of pole4
    Rotation speed(R/M)1500 1800
    Temperature rise(℃)125
    Insulation grade(stator/rotor)H/H
    Voltage regulation range w/o load≥95%~105%
    Steady-state voltage deviationLess ±1%
    Interference factorTIF<50,THF<2%
    IP gradeIP23
    Control panelModelOM588
    ManufacturerOUMA
    Power outputTerminal post
    InstallationIn-built and remote cable connected
    Remote conrol w/ cable(M)12
    ManufacturerOUMA
    Auto functionManual/auto protection/shutdown, water temperature alarm, oil pressure alarm
    Parameter displayAC voltage, frequency, running hour, charging voltage
