OUMA never stops to develop and improve new products based on
launch of several series standby power systems. To bring more
conveniences and benefits to the users,OUMA started involving in
industrial machinery with the base of rich experience in power

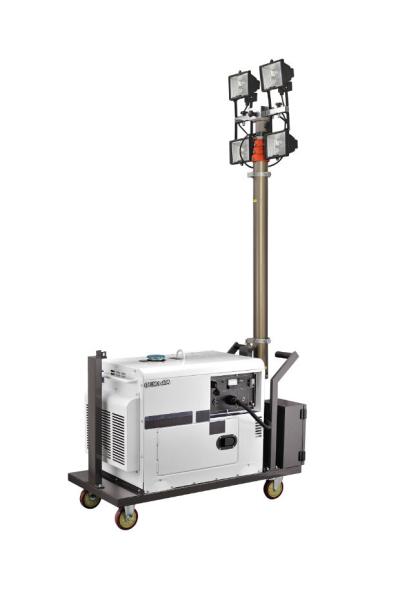

system solutions. OUMA mobile light towers are widely used as
lighting in the sections of construction sites, emergency
occasions, mining, civil engineering and accidental cases etc.
All mobile light towers are equipped with high quality OUMA low
noise generators with rest assured guarantee.
High wind resistance and sufficient lumination.
Compact structure with 1000w,4000w and 6000w brand halide lights
with easy and quick installation.
Other power of lights are available as per customer real demands.
Mast and illumination angle are flexible for free adjustment.
The mobile light towers are easy to operate and adjust with no
professional requirement.
Large-area lighting
The solf light is most suitable for construction sites and other
outdoor activities. The unique light cover structure collect the
10% upward light back to the working area. Philip brand lamp means high quality and durability.
Compact structure,easy operation
High quality OUMA silent generators to match mobile light towers,
ensuring small size operating with low noise.Phumatic lifting mast,rise or fall simply by pressing buttons on
the control panel.Easy and safe operation.
Convenient transportation
Chassis of the mobile light tower is equipped with 4 wheels and
brakes for easy movement and transportation. Move forward or backword with handles.
Advantages of halide lamps
Light is generated by internal gas of the metal halide lamp through
a thin layer. No need to worry about the filament over time break
and lock of lighting.
Specifications:
| Model | OM15000TGCD |
| Frame Model | OUMA-8 |
| Generator Model | OM15CY |
| Rated Frequency(Hz) | 50 60 |
| Rated Voltage(V) | 220 115/230 |
| Rated Output(KVA) | 15 17 |
| Max Output(KVA) | 16.5 18.7 |
| Fuel Type | Diesel |
| Fuel Consumption(L/h) | 3.5 |
| Fuel Tank Capacity(L) | 120 |
| Continuous Running(h) | 24 |
| Generator N.G(kg) | 560 |
| Power--NO.of Lamp | 1000-8 |
| Total Power of Lamp(W) | 8000 |
| Luminuous Flux(lm) | 132000 |
| Mast Structure | Four section lifting |
| Mast Length(mm) | 4800-9000 |
| Dimension(Retracted) | 3200×1150×2100 |
| Inclination | ≤10° |
| Wind Resistance | ≤8 |
| Net Weight(kg) | 750 |
